Sky Rover Optics

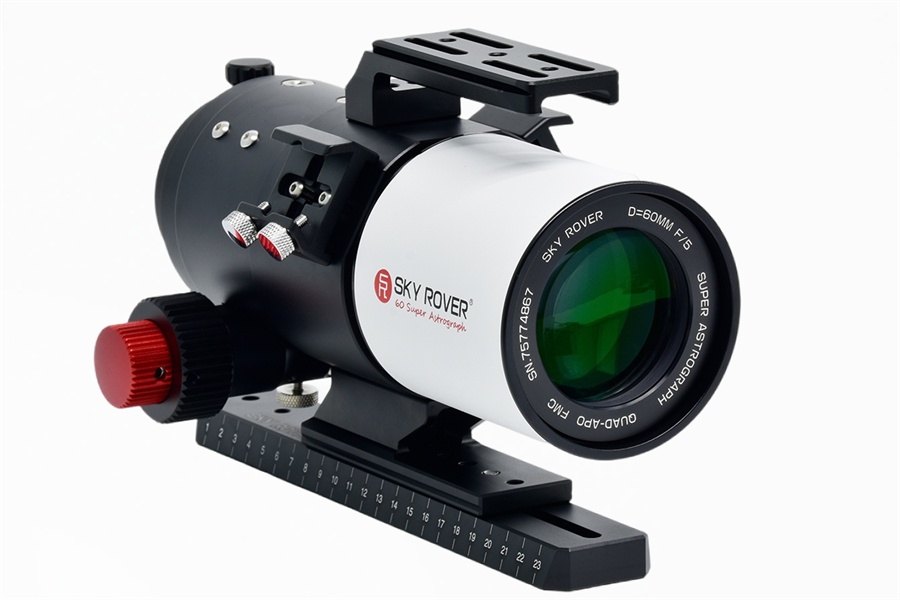

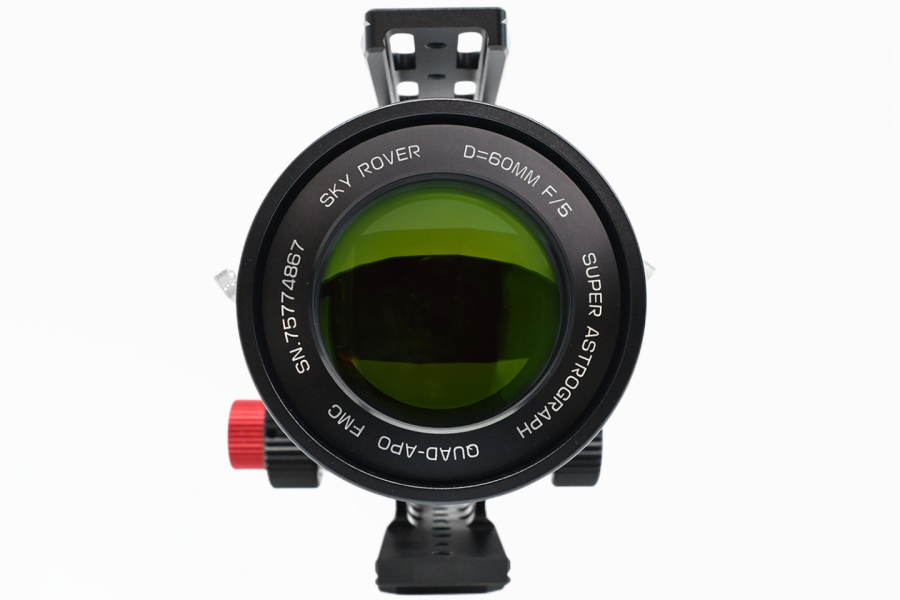

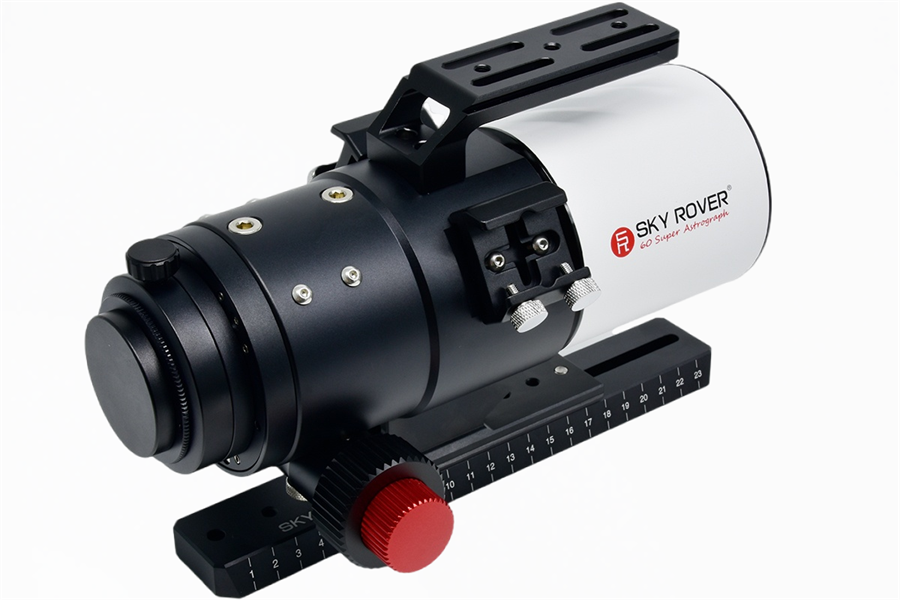

60mm F/5 Super Astrograph scope

60mm F/5 Super Astrograph scope

Regular price US$959.00
Regular price Sale price US$959.00
Sale Sold out

View full details

60 SA

Sky Rover launched 60 SA in2023, it adopts Petzval structure, image circle is 45mm and meet full frame camera requirement. The quad design removes the requirement for a separate reducer or field flattener. While this fixes the focal length at 300mm making this a one focal length scope, it also allows for more compactness and portability.

Work show


Model: SKY ROVER 60mmF/5 Super Astrograph
Diameter: 60mm
Focal length: 300mm
Focal ratio: F/5
Optics: 4 elememts 4 groups, Petzval structure, including some super ED glass and lanthanide material.
Coating: FMC
Focuser: 2.8-inch dual-speed rack and pinion focuser with CAA and 19mm total travel for astro imaging;
The end of focusing tube is with M70x1 thread; M48x0.75 Female
Body: made of aluminum alloy.
Size: about 265 mm (Fully Retracted) ;about 340.4 mm (Fully Extended)
Weight: OTA about 2.98kg
Standard: Vixen dovetail plate, patented handle.
Packaging: Full-wrapped pearl cotton and double-layer cartons

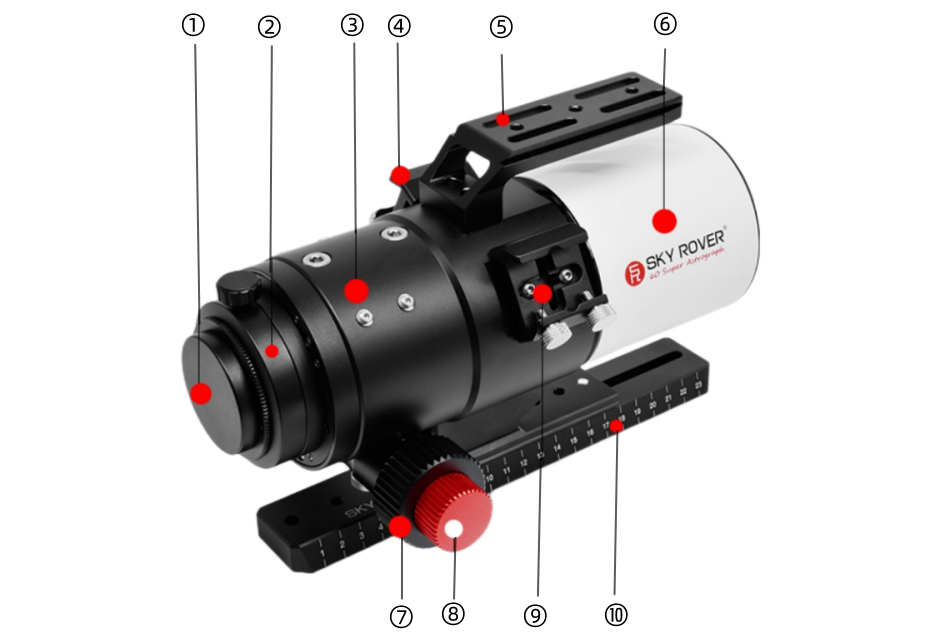

Basic Structures

(1) Thread interface                                   (2) CAA                                     (3) Focuser                                    (4) Finder base                                (5)Handle
(6) Dewshield                                             (7) Coarse focus wheel             (8) Fine focus wheel                      (9) Finder base                               (10)Dovetail plate

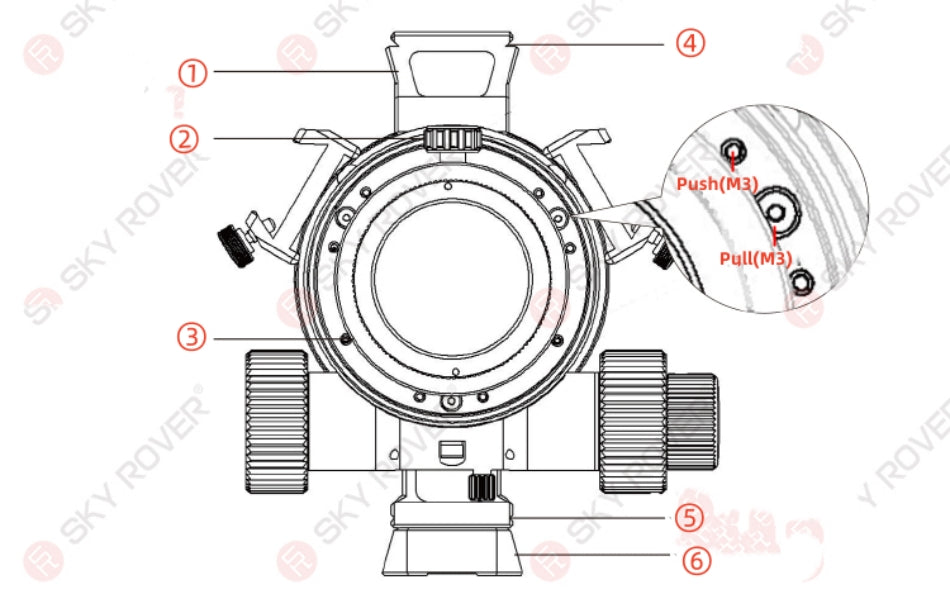

Focal Plane Controller Illustration

① Standard narrow plate clamp fixed position                    ② CAA locking screw                                                ③ anti-off screws(M3)
④ ARCA-SWISS standard clamp fixed position                         ⑤ ARCA-SWISS standard quick release plate            ⑥ dovetail plate(narrow)

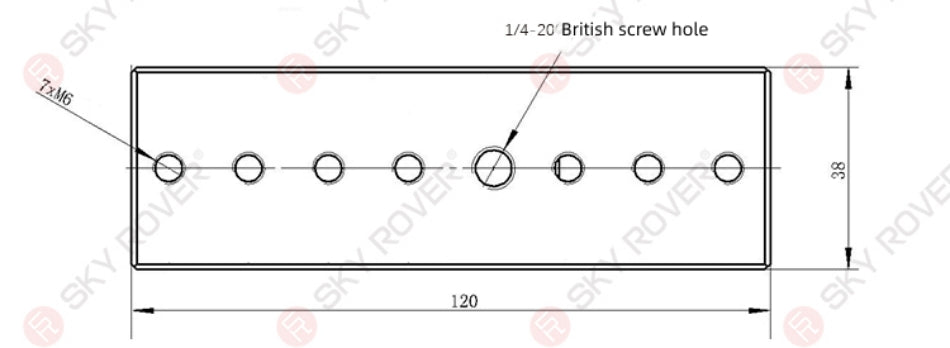

ARCA-SWISS standard quick release plate screw holes diagram

PS: This plate supports connect camera mount

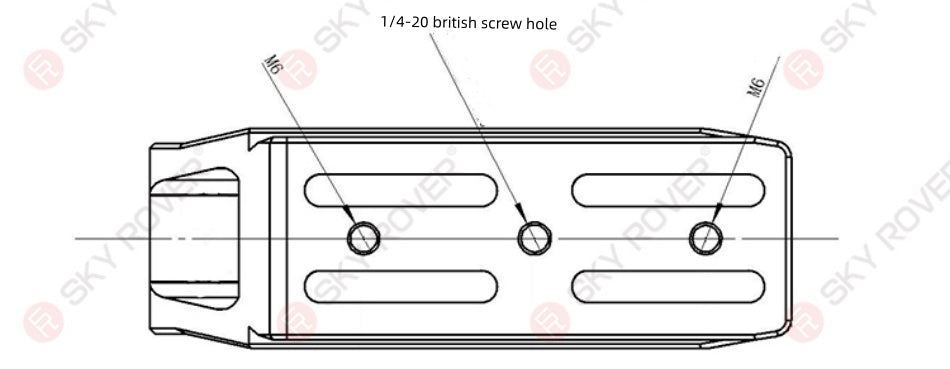

Handle screw holes diagram

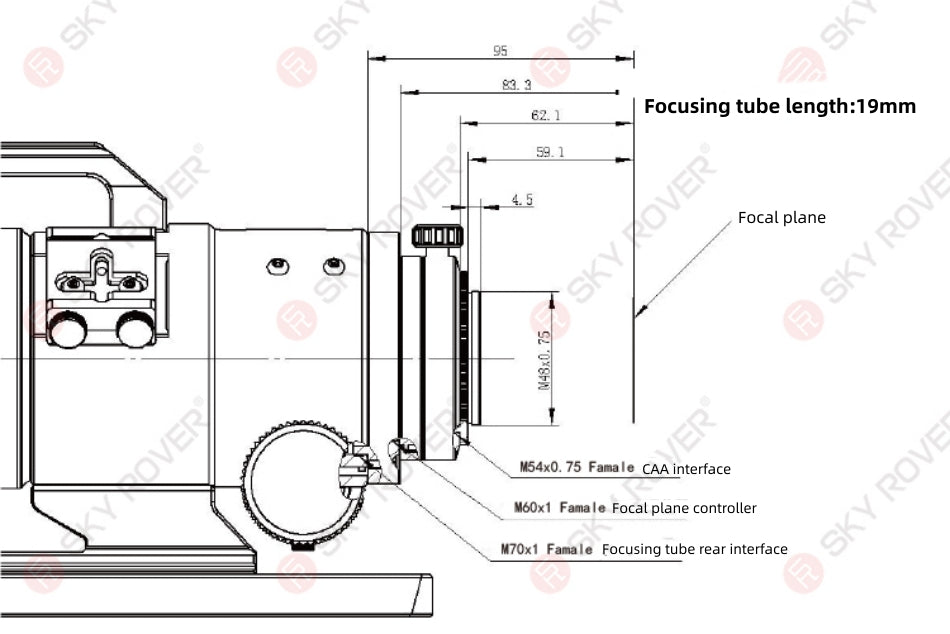

Back focal length Illustration

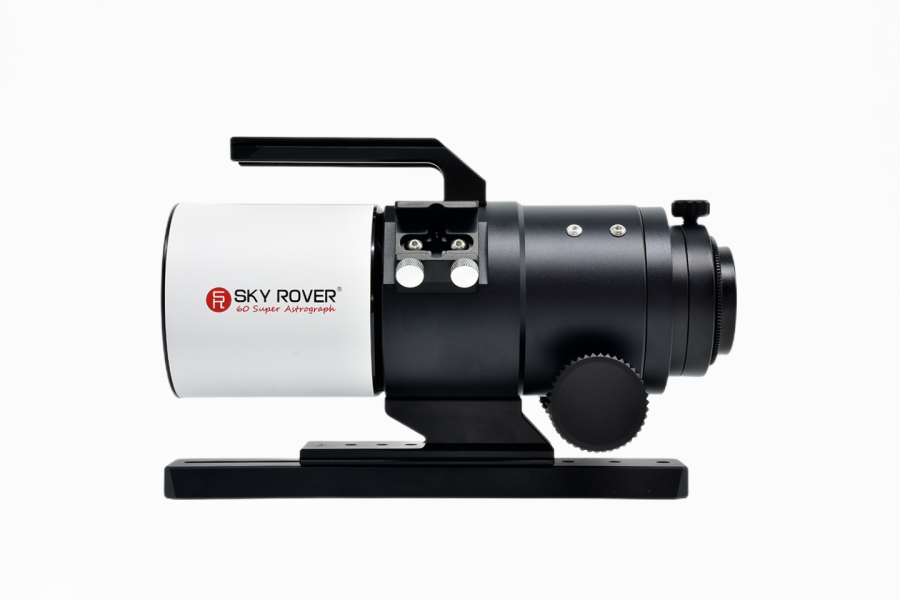

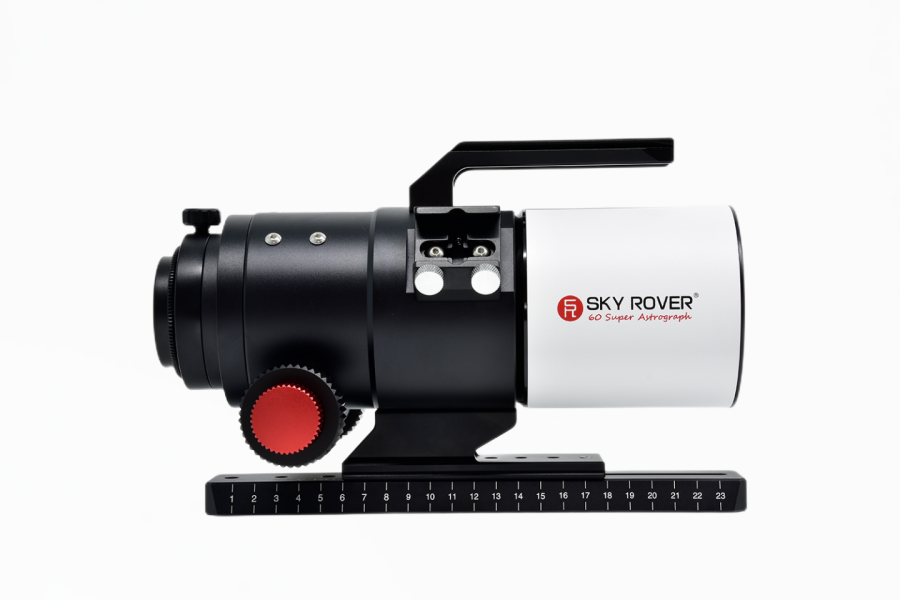

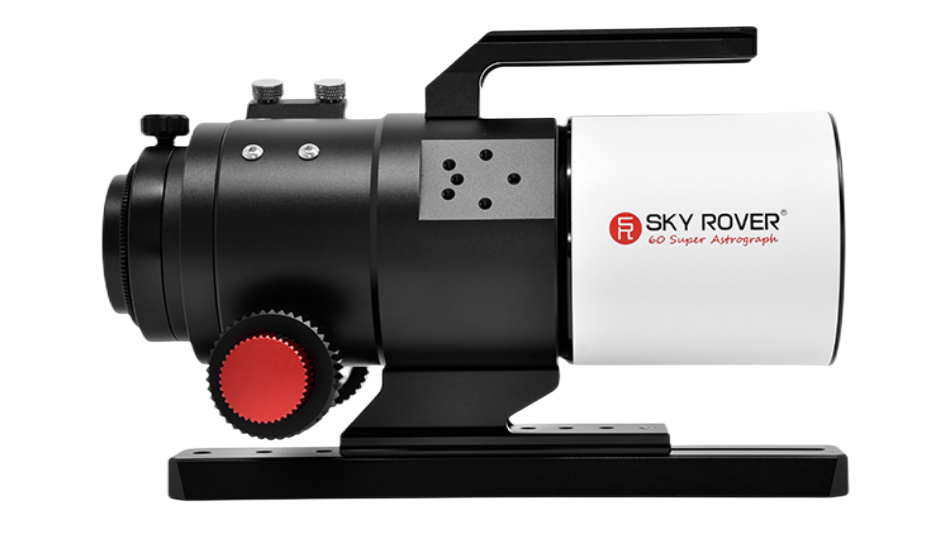

Product Show
