1x Field Flattener for 80/90/102/130/155 APO PRO

1x Field Flattener for 80/90/102/130/155 APO PRO

US$149.00
US$149.00
Sale Sold out
尺寸

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
M
Mark Grimes
130 APO Field Flattener

Fits telescope.
Provides larger image circle.

T
Theron.Walter

제품 잘 받았습니다

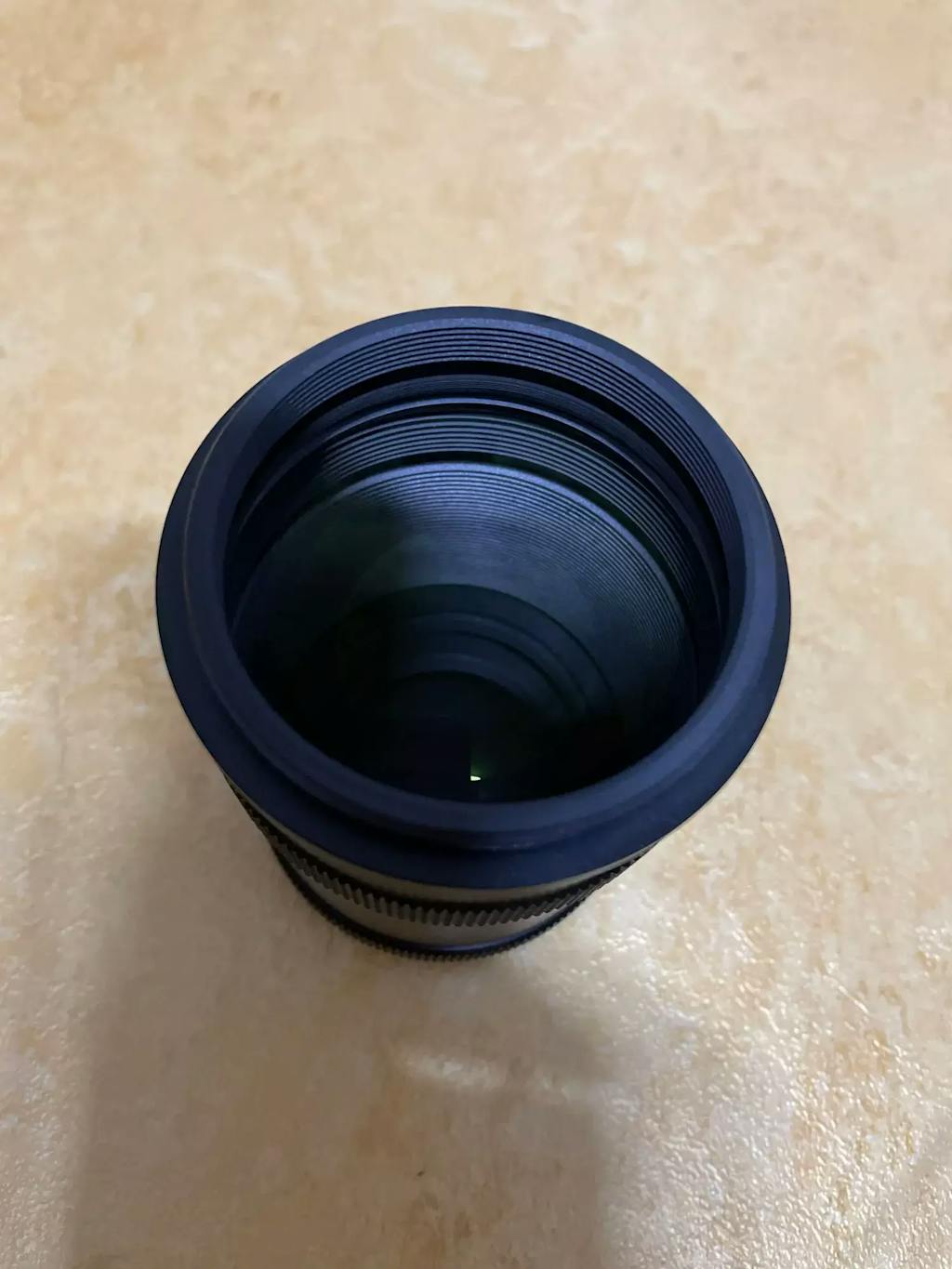

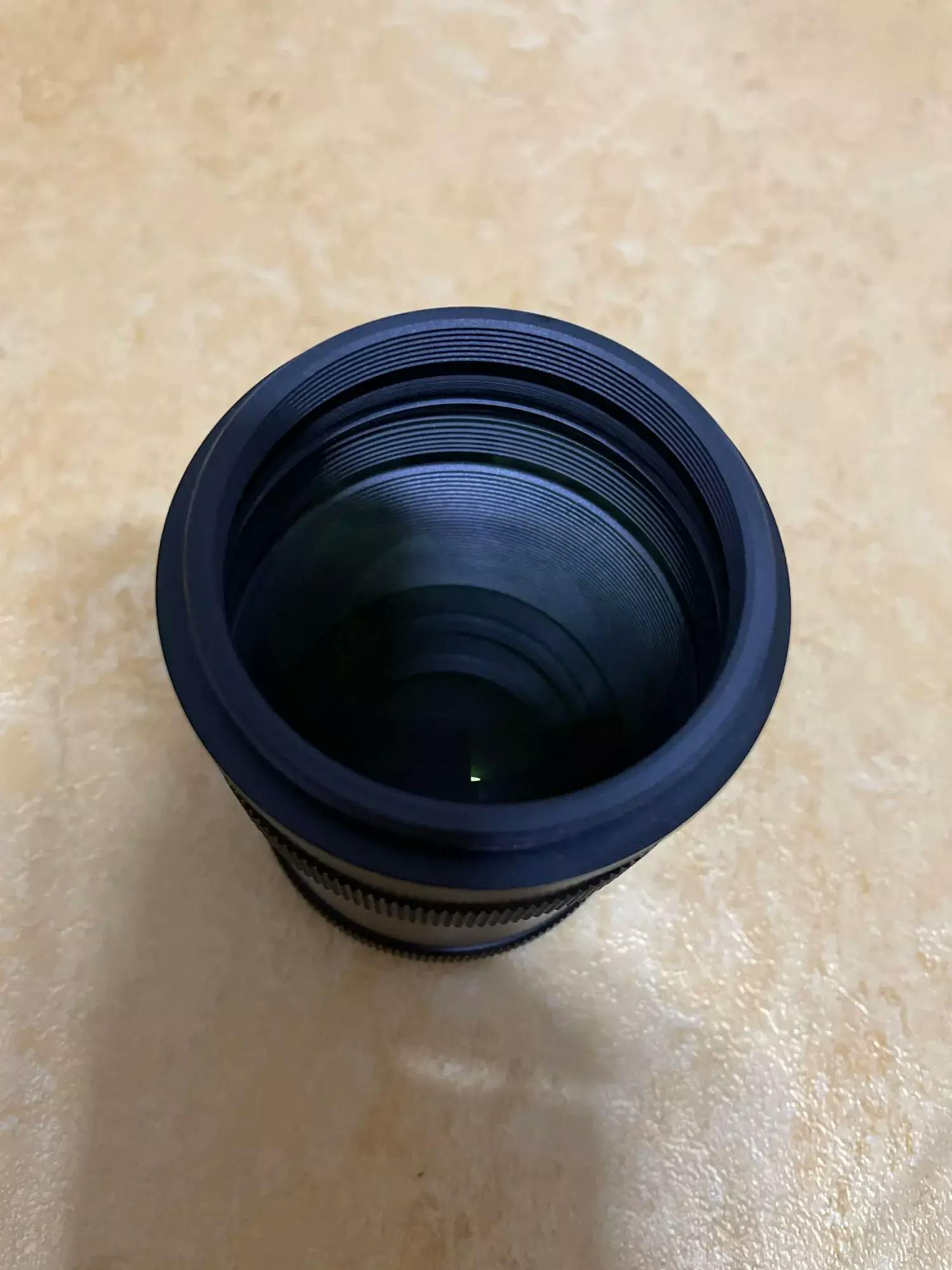

User picture
View full details

1x Field Flattener

In 2021, Sky Rover launched a new 1xField flattener for 80/90/102/130/155 APO PRO, it adopts front thread M63X1 and rear thread M48X0.75, which can meet the illumination requirements of full-frame photography.

Considering the use of CCD and OAG, the shell can be removed to use, which can have longer work distance to satisfy the use of filter wheel /OGA/CCD.

Specification

Model: 1x for 80APO PRO Model: 1x for 90APO PRO Model: 1x for 102APO PRO Model: 1x for 130APO PRO  Model: 1x for 155APO PRO
Interface Spec: M63X1/M48X0.75 Interface Spec: M63X1/M48X0.75 Interface Spec: M63X1/M48X0.75 Interface Spec: M63X1/M48X0.75 Interface Spec: M63X1/M48X0.75
Back Focus: 55mm Back Focus: 55mm Back Focus: 55mm Back Focus: 55mm Back Focus: 55mm
Net weight: 420g
 Net weight: 400g Net weight: 400g Net weight: 380g Net weight: 380g

Back Focus Diagram(55mm)

Connection Diagram

               ①Removing the adaptor at the end

               ②Installing filter

               ③Screwing adaptor into flattener

             *Full frame camera will be with light vignetting when install inner 2" filter

①1x flattener        ②Filter         ③Adaptor (M48x0.75 thread)        ④SLR mount(M48 T)         ⑤SLR       ⑥CCD mount        ⑦CCD

①1x flattener       ②Filter       ③Adaptor (M48x0.75 thread)         ④M48 adaptor   ⑤OAG       ⑥Filter wheel         ⑦CCD

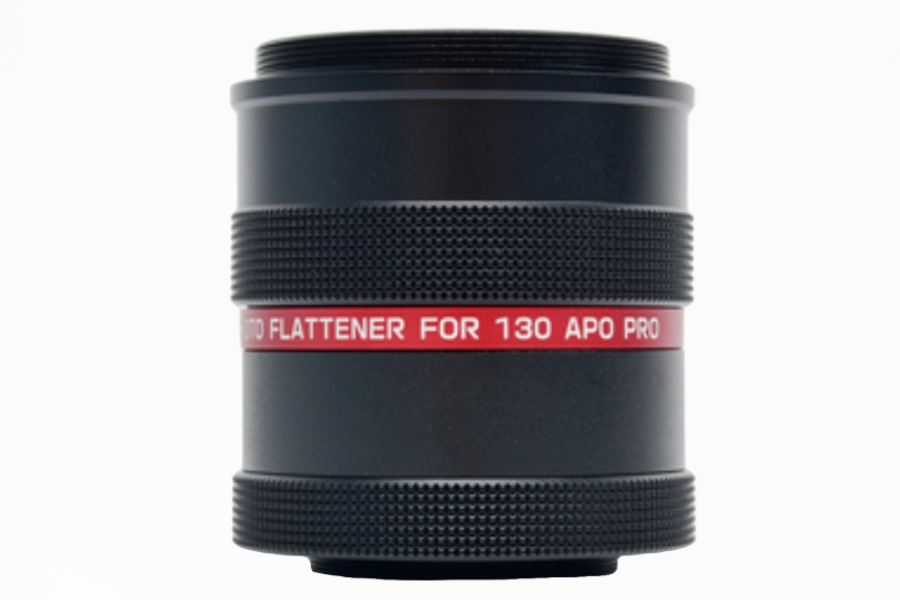

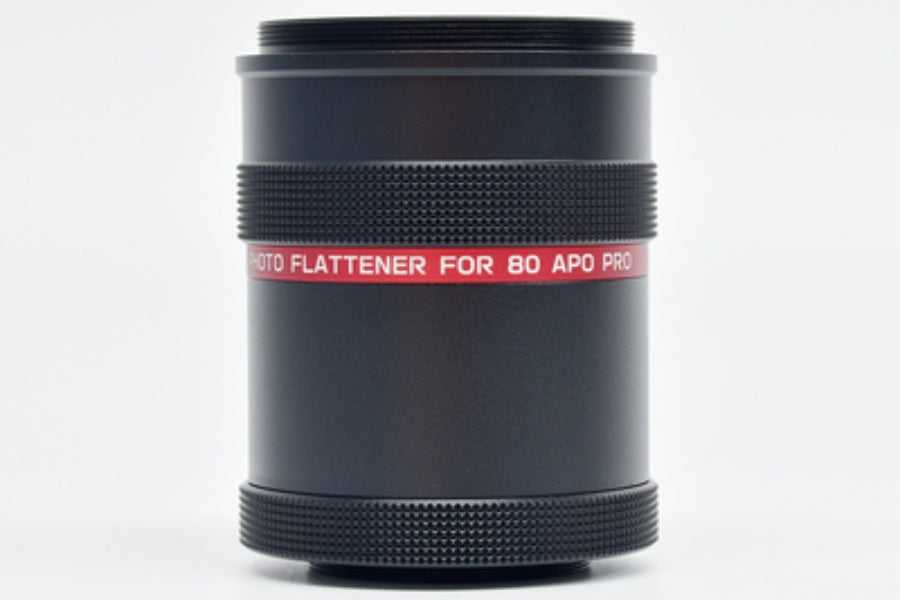

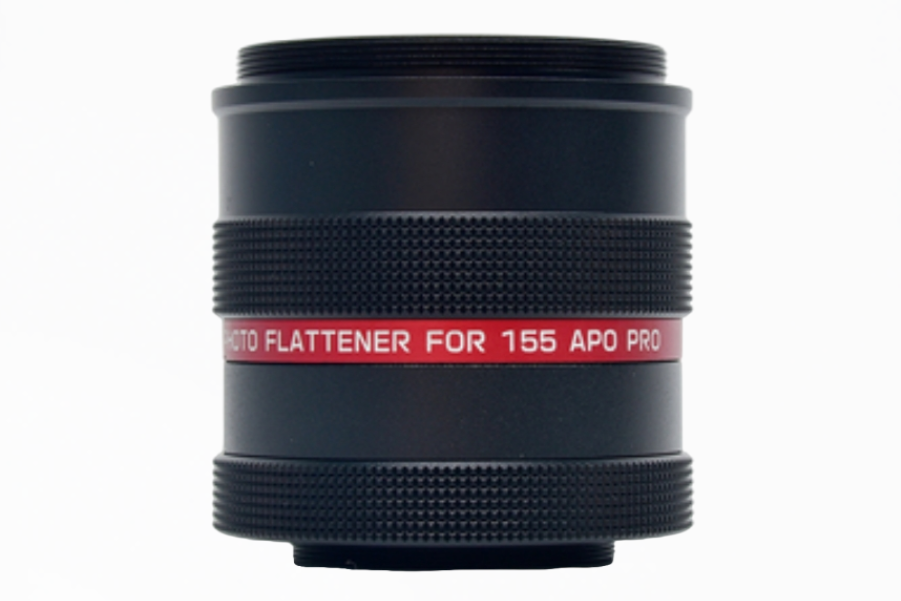

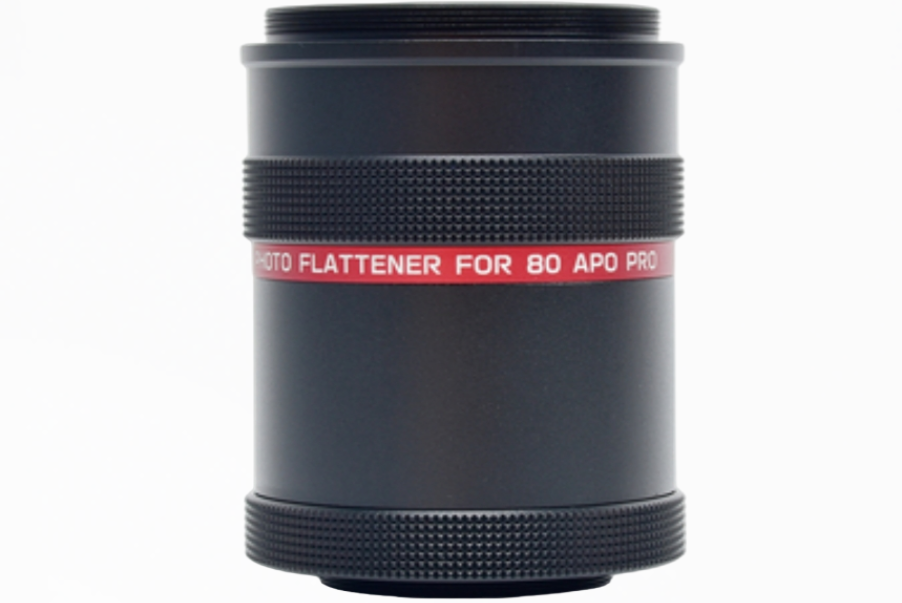

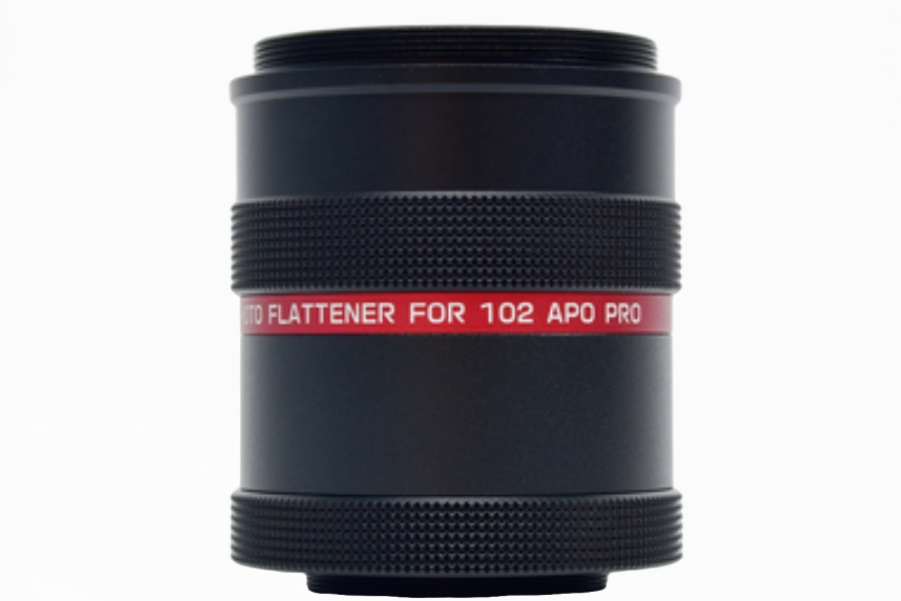

Product Show
