U-MOUNT Fork for BINO
Sky Rover launched U-MOUNT in 2019, it is suitable for giant binoculars. The tripod is made of aluminum and stainless steel. Each axis is with bearings to ensure rotating accuracy, the disk provide damp, the side handles provide locking. The base hole is 3/8 screw, which is designed to fit on most of tripod. It is with quick release plate to easy to install, rational design make you use your binoculars multi-angle.
Specifications
Product Name: U-MOUNT for 70/82/100/120 BINO
Material: Aluminum+stainless steel
Base hole: 3/8 screw
Net Weight: About 5.8kg
Dimension: 450x330x140mm
Product Name: U-MOUNT for 150ED BINO
Material: Aluminum+stainless steel
Base hole: 3/8 screw
Net Weight: About 13kg
Dimension: 580x500x260mm
Structures
U-MOUNT for BINO
(1) Altitude Tension Knob (2) Quick Release Clamp (3) Altitude Tension Knob (4) Handle (5) Bumper Tape
(6) Support Shaft (7) Lubrication Cover (8) Horizontal Tension Knob (9) Horizontal base (10) 3/8 screw
U-MOUNT for 150ED BINO (Compatible LOSMANDY wide plate)
(1) Altitude Tension Knob (2) Quick Release Clamp (3) Altitude Tension Knob (4) Handle (5) Bumper Tape
(6) Support Shaft (7) Lubrication Cover (8) Horizontal Tension Knob (9) Horizontal base (10) 3/8 screw
Installation Sequence
1. Installing horizontal base to your tripod, and put lubrication cover in the correct position.
2. Inserting U-MOUNT head into the base.
3. Installing binoculars and adjusting balance and tension.

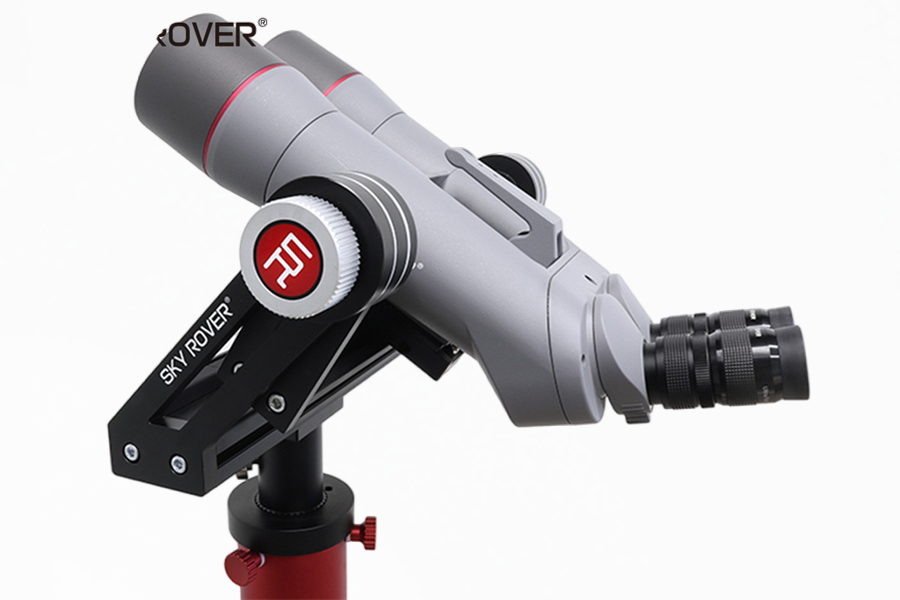

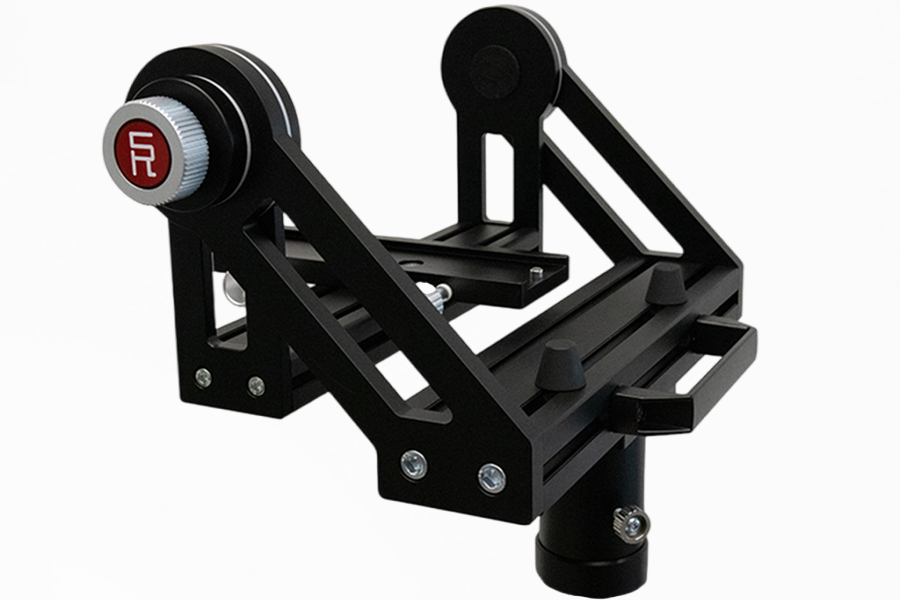

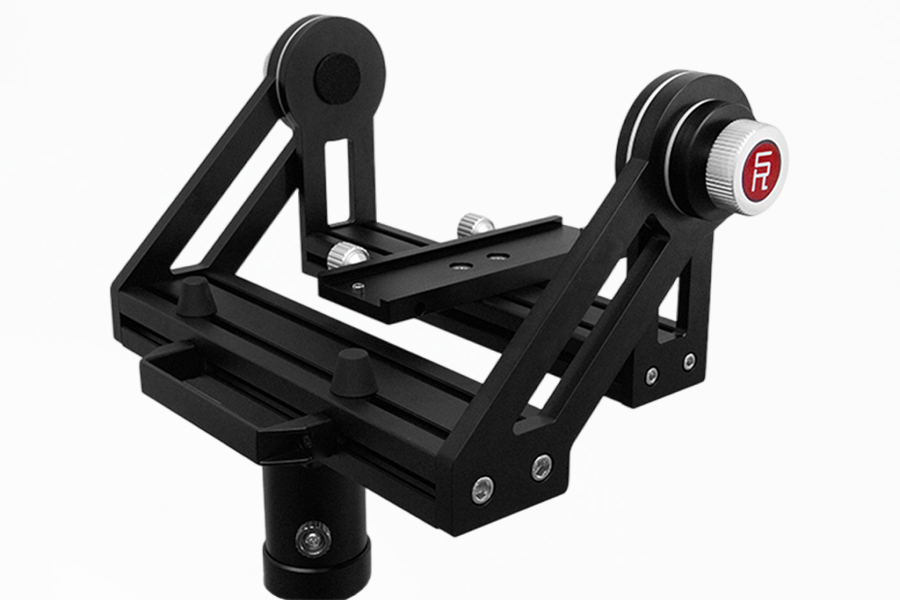

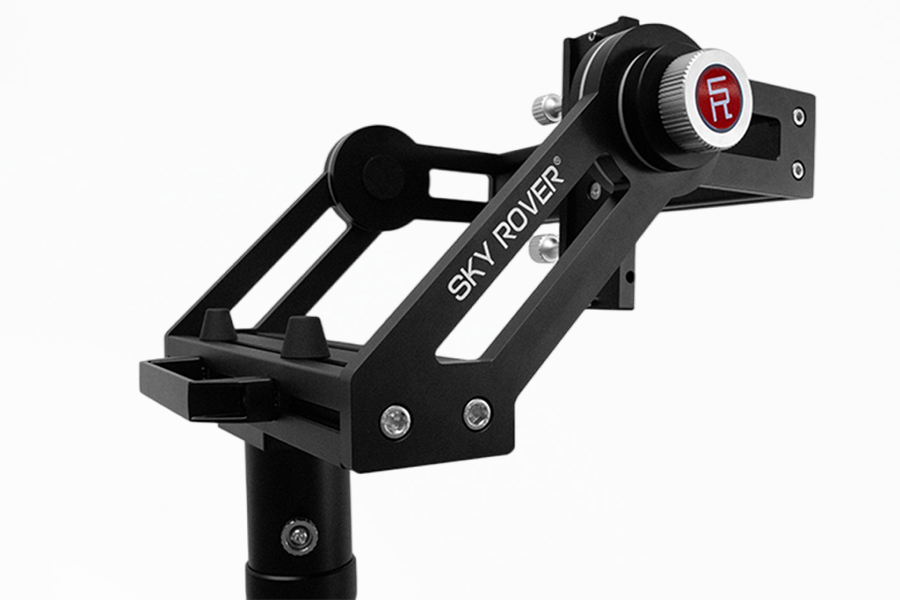

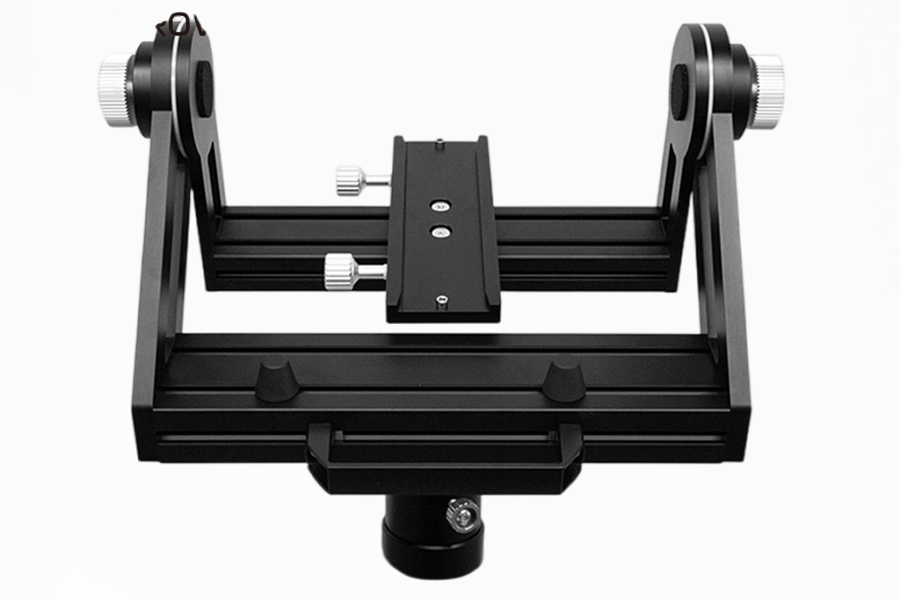

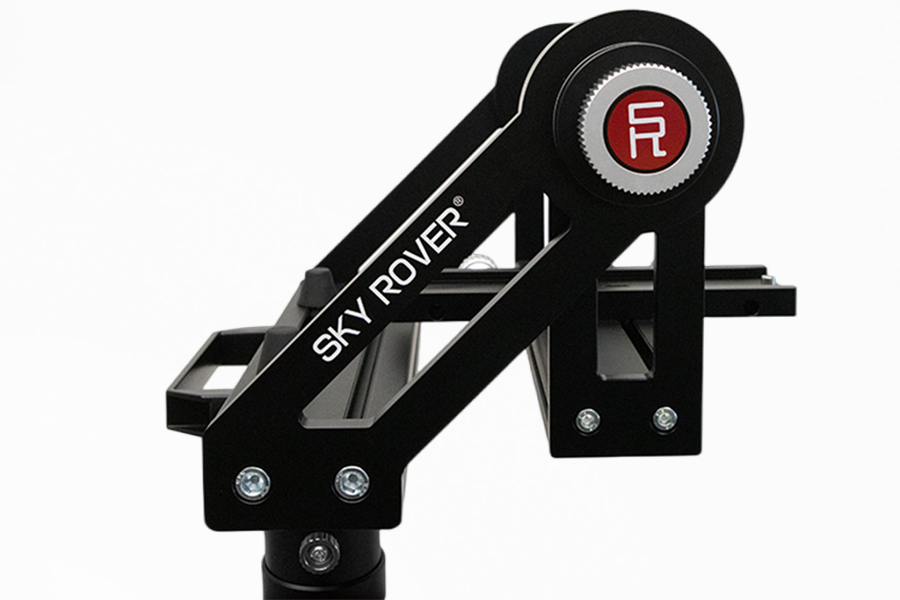

Product Show
